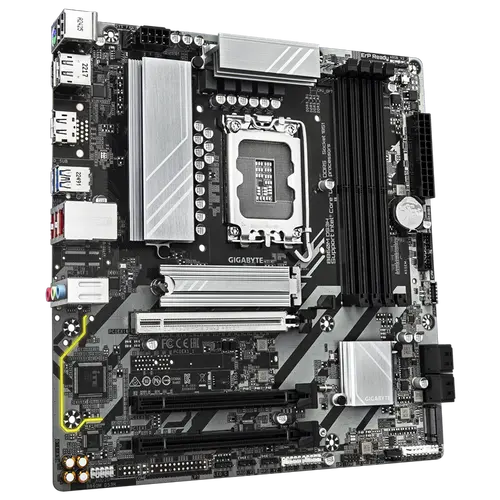

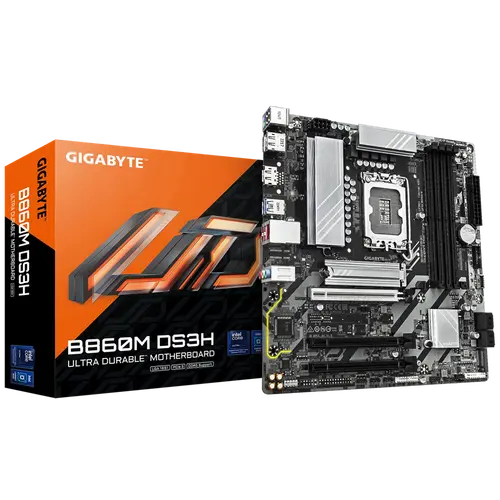

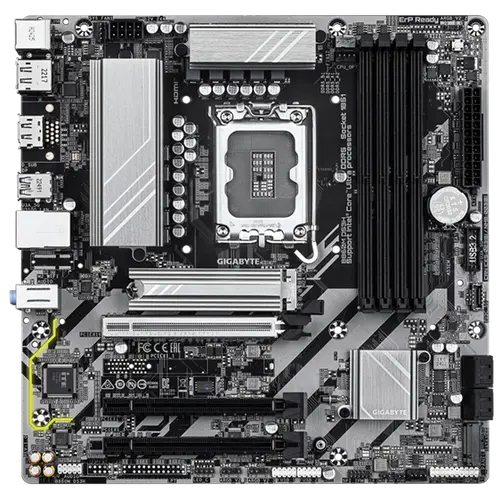

Name: Дънна платка, GIGABYTE GB B860M DS3H
Brand: GIGABYTE
SKU: B860M DS3H 1.0
Price: 140.66 EUR
Availability: InStock

☎ 0886 177 222 ✉ info@xtreme.bg

Доставка· Условия· Рекламация· Контакти·

Вход

⇆Сравни ⚙Сглоби PC Количка

GIGABYTE

Цена

€140⁶⁶ / 275¹¹ лв

с ДДС

* ВЪНШЕН ДОСТАВЧИК - (1 до 3 дни)

* - Стоката е в склад на официалния вносител на марката за България. Времето за доставка е обикновено от 1 до 3 работни дни. Възможно е към момента на завършване на поръчката, продукта да е вече изчерпан. В случай на изчерпана наличност ще се свържем с Вас

К-во:

Добави в Количката

Удължи гаранцията си

+1 година: + 19€

+2 години: + 27€

Код: B860M DS3H 1.0
Категория: Дънни Платки
Гаранция: 3 Години

РЕЙТИНГ

ТВОЯ РЕЙТИНГ

Мнения

Информираме Ви, че въпреки нашите усилия не можем да гарантираме, че публикуваната информация и снимки не съдържат неточности или грешки, които не могат да бъдат правно основание за претенции.

Описание
Детайли
Мнения
ИИ Описание

Vendor_url

https://www.gigabyte.com/Motherboard/B860M-DS3H-rev-10

Graphics

Integrated Graphics Processor-Intel® HD Graphics support:

- 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz

* Support for HDMI 2.1 version and HDCP 2.3.

- 2 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz

* Support for DisplayPort 2.1 version.

Support for up to triple-display at the same time

CPU's supported

LGA1851 socket: Support for Intel® Core™ Ultra Processors

L3 cache varies with CPU

Chipset

Intel® B860 Express Chipset

Expansion slots

CPU:

- 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16)

* The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.

Chipset:

- 2 x PCI Express x16 slots, supporting PCIe 4.0 and running at x1 (PCIEX1_2/3)

Storage

CPU:

- 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 5.0 x4/x2 SSD support) (M2A_CPU)

Chipset:

- 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2N_SB)

- 4 x SATA 6Gb/s connectors

RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices

Memory type

Support for DDR5 9066(O.C) /8800(O.C) /8600(O.C) / 8400(O.C) /8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) /6400/5600 MT/s memory modules

4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory

Dual channel memory architecture

Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)

Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules

Support for Extreme Memory Profile (XMP) memory modules

Rear panel I/O

iTE® I/O Controller Chip

USB

Chipset:

- 1 x USB Type-C® port with USB 3.2 Gen 1 support, available through the internal USB header

- 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel

- 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)

- 3 x USB 2.0/1.1 ports on the back panel

Chipset+USB 2.0 Hub:

- 4 x USB 2.0/1.1 ports available through the internal USB headers

Connectors

1 x 24-pin ATX main power connector

1 x 8-pin ATX 12V power connector

1 x CPU fan header

1 x CPU fan/water cooling pump header

1 x system fan header

1 x system fan/water cooling pump header

3 x addressable RGB Gen2 LED strip headers

1 x RGB LED strip header

2 x M.2 Socket 3 connectors

4 x SATA 6Gb/s connectors

1 x front panel header

1 x front panel audio header

1 x USB Type-C® header, with USB 3.2 Gen 1 support

1 x USB 3.2 Gen 1 header

2 x USB 2.0/1.1 headers

1 x Trusted Platform Module header (For the GC-TPM2.0 SPI V2 module only)

1 x Q-Flash Plus button

1 x reset jumper

1 x Clear CMOS jumper

Back Panel Connectors

1 x PS/2 keyboard/mouse port

1 x HDMI port (Note)

2 x DisplayPorts (Note)

1 x USB 3.2 Gen 2 Type-A port (red)

2 x USB 3.2 Gen 1 ports

3 x USB 2.0/1.1 ports

1 x RJ-45 port

3 x audio jacks

Audio

Realtek® Audio CODE

High Definition Audio

2/4/5.1/7.1-channel

Lan

Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)

BIOS

1 x 256 Mbit flash

Use of licensed AMI UEFI BIOS

PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Form factor

Micro ATX Form Factor

24.4cm x 24.4cm

Support for Windows 11 64-bit

Support for Windows 10 64-bit

Warranty

36 Months

Данни, подадени от официалния вносител за България.

Атрибут	Стойност
Vendor_url	https://www.gigabyte.com/Motherboard/B860M-DS3H-rev-10
Chipset	Intel® B860 Express Chipset
OS	Support for Windows 10 64-bit
OS	Support for Windows 11 64-bit
Warranty	36 Months
CPU's supported	LGA1851 socket: Support for Intel® Core™ Ultra Processors
CPU's supported	L3 cache varies with CPU
Memory type	Dual channel memory architecture
Memory type	Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Memory type	Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Memory type	Support for Extreme Memory Profile (XMP) memory modules
Memory type	4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory
Memory type	Support for DDR5 9066(O.C) /8800(O.C) /8600(O.C) / 8400(O.C) /8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) /6400/5600 MT/s memory modules
Form Factor	Micro ATX Form Factor
Form Factor	24.4cm x 24.4cm
Audio	High Definition Audio
Audio	2/4/5.1/7.1-channel
Audio	Realtek® Audio CODE
Rear panel I/O	iTE® I/O Controller Chip
LAN	Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Expansion Slots	* The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.
Expansion Slots	Chipset:
Expansion Slots	CPU:
Expansion Slots	- 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16)
Expansion Slots	- 2 x PCI Express x16 slots, supporting PCIe 4.0 and running at x1 (PCIEX1_2/3)
Graphics	- 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
Graphics	* Support for HDMI 2.1 version and HDCP 2.3.
Graphics	Support for up to triple-display at the same time
Graphics	Integrated Graphics Processor-Intel® HD Graphics support:
Graphics	* Support for DisplayPort 2.1 version.
Graphics	- 2 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz
Features	Support for Q-Flash Plus
Features	Support for Q-Flash
Features	Support for GIGABYTE Control Center (GCC)
Features	Support for Smart Backup
BIOS	1 x 256 Mbit flash
BIOS	Use of licensed AMI UEFI BIOS
BIOS	PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
I/O	iTE® I/O Controller Chip
Storage	RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
Storage	CPU:
Storage	Chipset:
Storage	- 4 x SATA 6Gb/s connectors
Storage	- 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 5.0 x4/x2 SSD support) (M2A_CPU)
Storage	- 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2N_SB)
Connectors	1 x 24-pin ATX main power connector
Connectors	1 x CPU fan header
Connectors	1 x system fan/water cooling pump header
Connectors	1 x front panel header
Connectors	1 x front panel audio header
Connectors	1 x USB Type-C® header, with USB 3.2 Gen 1 support
Connectors	1 x USB 3.2 Gen 1 header
Connectors	2 x USB 2.0/1.1 headers
Connectors	1 x Q-Flash Plus button
Connectors	1 x reset jumper
Connectors	1 x Clear CMOS jumper
Connectors	1 x 8-pin ATX 12V power connector
Connectors	1 x system fan header
Connectors	4 x SATA 6Gb/s connectors
Connectors	1 x RGB LED strip header
Connectors	2 x M.2 Socket 3 connectors
Connectors	Back Panel Connectors
Connectors	1 x PS/2 keyboard/mouse port
Connectors	1 x HDMI port (Note)
Connectors	1 x RJ-45 port
Connectors	3 x audio jacks
Connectors	1 x CPU fan/water cooling pump header
Connectors	2 x USB 3.2 Gen 1 ports
Connectors	3 x addressable RGB Gen2 LED strip headers
Connectors	1 x USB 3.2 Gen 2 Type-A port (red)
Connectors	3 x USB 2.0/1.1 ports
Connectors	2 x DisplayPorts (Note)
Connectors	1 x Trusted Platform Module header (For the GC-TPM2.0 SPI V2 module only)
USB	Chipset:
USB	- 1 x USB Type-C® port with USB 3.2 Gen 1 support, available through the internal USB header
USB	- 4 x USB 2.0/1.1 ports available through the internal USB headers
USB	Chipset+USB 2.0 Hub:
USB	- 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
USB	- 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel
USB	- 3 x USB 2.0/1.1 ports on the back panel
Тегло	0.00кг

Данни, автоматично извлечени от интернет. Точността не е гарантирана. За подробна информация, моля, свържете се с нас или посетете страницата на производителя.

Атрибут	Стойност
Сокет	Intel LGA 1851
Форм фактор	microATX (mATX)
Чипсет	Intel B860
Тип памет	DDR5
Слотове за памет (count)	2
Максимална памет (GB)	128
M.2 слотове (count)	2
SATA портове (count)	4
PCIe x16 слотове (count)	1
Вграден Wi-Fi	Не
Скорост на LAN	2.5 Gbps
USB-C портове (count)	1
RGB подсветка	Не
Тегло	0.00кг

Внимание! Тъй като не всички вносители подават коректно данните за продуктите, информацията по-долу е извлечена с помощта на изкуствен интелект от различни източници в интернет и не е 100% коректна. Ако се съмнявате в нещо, моля свържете се с нас, за да проверим точно желаните от вас характеристики.

Дънна платка GIGABYTE B860M DS3H - LGA1851, DDR5, Micro-ATX

Проектирана за процесори Intel Core Ultra, GIGABYTE B860M DS3H осигурява солидна основа за високопроизводителни продуктивни и гейминг системи. С поддръжка на най-новата DDR5 памет, PCIe 5.0 съхранение и здрав дизайн на захранване, тази платка предлага изключителна стойност в компактен Micro-ATX формат.

Ключови Предимства

Поддръжка за ново поколение CPU — LGA1851 гнездо, съвместимо с процесори Intel Core Ultra.
DDR5 памет — Двуканален DDR5 за по-бърза трансферна скорост и подобрена реакция на системата.
PCIe 5.0 за съхранение — Един PCIe 5.0 M.2 слот за ултра-бързи NVMe SSD.
Стабилна свързаност — 2.5GbE LAN осигурява нисколатентна мрежа.
Основно I/O — USB-C, HDMI и D-Sub портове за гъвкави връзки с дисплеи и периферия.

Технически Спецификации

Спецификация	Стойност
Сокет	LGA1851
Чипсет	Intel B860
Форм фактор	Micro-ATX
Тип памет	DDR5
Слотове за памет	2 (макс. 128GB)
M.2 слотове	2 (1x PCIe 5.0, 1x PCIe 4.0)
SATA портове	4
PCIe x16 слотове	1
Wi-Fi	Не
LAN скорост	2.5 Gbps
USB-C портове	1
RGB подсветка	Не
